INTRODUCTION TO VISUAL STUDIO 2010


Visual Basic 2010 is the latest version of Visual Basic launched by Microsoft in 2010. It
is almost similar to Visual Basic 2008 but it has added many new features. Visual Basic
has gone through many phases of development since the days of BASIC that was built
for DOS. BASIC stands for Beginners' All-purpose Symbolic Instruction Code.
The
program code in Visual Basic resembles the English language. Different software
companies had produced many different versions of BASIC for DOS, such as Microsoft
QBASIC, QUICKBASIC, GWBASIC, and IBM BASICA and more. Then, Microsoft
launched the first graphical BASIC, Visual Basic Version 1 in 1991. It is GUI based and
especially developed for MS window. Since then Microsoft slowly phased out the DOS
versions of BASIC and completely replaced them by Visual Basic.

Visual Basic was initially a functional or procedural programming language until the
popular Visual Basic 6. Then, Microsoft transformed Visual Basic into a more powerful


object oriented programming language by launching Visual Basic.Net, Visual Basic
2005, Visual Basic 2008 and the latest Visual Basic 2010. Visual Basic 2010 is a full-
fledged Object-Oriented Programming (OOP) Language; it has caught up with other
OOP languages such as C++, Java, C# and others. However, you do not have to know
OOP to learn VB2010. In fact, if you are familiar with Visual Basic 6, you can learn
VB2010 effortlessly because the syntax and interface are almost similar. Visual Basic
2010 Express Edition is available for free download from the Microsoft site as shown
below:

The Start Page


When you launch Visual Basic 2010 Express, you can see the start page of the
Integrated Development Environment, as shown in Figure :-



The IDE consists of a few panes, namely:



• The Recent Projects Pane- it shows the list of projects that you have created
recently.

• The Get Started Pane- It provides some helpful tips so that you can quickly
develop your new application.

• The Latest News pane- It provides latest online news about Visual Basic 2010
Express. It will announce new releases and updates.
 Besides that, it also shows two icons, New Project and Open Project


The New Project Dialog

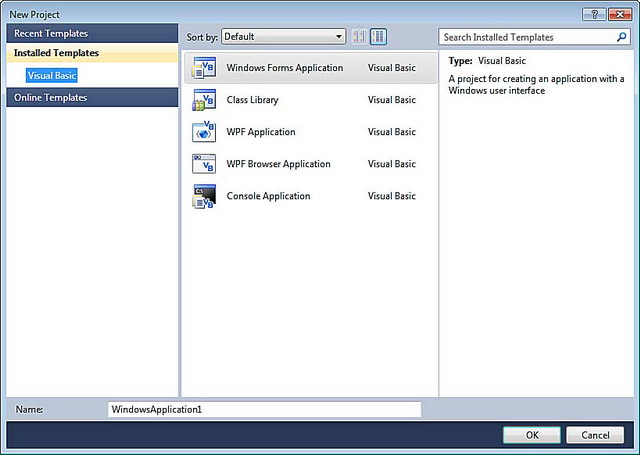

 When you click on the New Project icon, the Visual Basic 2010 New Project dialog will
appear, as shown in Figure :-


The Dialog box offers you five types of projects that you can create. They are Windows
Form Application, WPF Application, Console Application, Class Library and WPF
Browser Application. As we are going to create a standard Windows application, we will
select Windows Forms Application. At the bottom of this dialog box, you can change the
default project name WindowsApplication1 to some other name you like, for example,
MyFirstApplication. After you have renamed the project, click OK to go into the
Designer interface.


The Designer Interface

The VB2010 IDE Designer interface is shown in Figure 1.3. The Designer consists of
the Menu bar, the Toolbars, an empty Form, the Solution Explorer and the
Properties Window.

The VB2010 Designer environment that appears on your PC or laptop might not be the
same here, depending how you customize it. You can customize your interface by
dragging the windows and dock them or let them float. You can also hide them. To dock
a window, you drag its title bar and drag it to the side, top or bottom of the workspace or
another window. In Figure shown below, we have dragged the Solution Explorer and the
Properties Window to the side and docked them. You can also resize the docked
window by dragging the side of the window. To free up and float the docked window,
you just drag its title bar and move it away from the edge of the workspace.
If you do not see a particular window such as the properties window, you can click on
the View menu and click the name of the window, that particular window will appear.


 Form-

The Form is the first place to build your application. It is the place to design the user interface.

 Solution Explorer -

The solution explorer displays a list of projects, files and other components that you can easily browse and access.

 Properties Window-

 This is the place to set the properties of the objects in your application. The objects include the default form and the controls you place in the form. We will learn more about setting properties later.
